See what lies beneath
Explore the infrastructure buried under your city.
Interactive 3D models of tunnels, shafts and pipes, placed on a real-world map. Fade away the ground, set your viewing depth, and look underground from your phone.
Quick View
Enter any address to explore its terrain in 3D — no project needed.
Engineering Tools
Terrain data and ground profiles for civil engineering
Projects
5 available
Pump Station 25
32A Miranda Street, Avondale, Auckland 0600, New Zealand
WSL Pump Station 25 Site located at Miranda Reserve at 32A Miranda Street, Avondale.
Point Erin
94 Shelly Beach Road, Westhaven, Auckland 1011, New Zealand
Point Erin Shaft Site

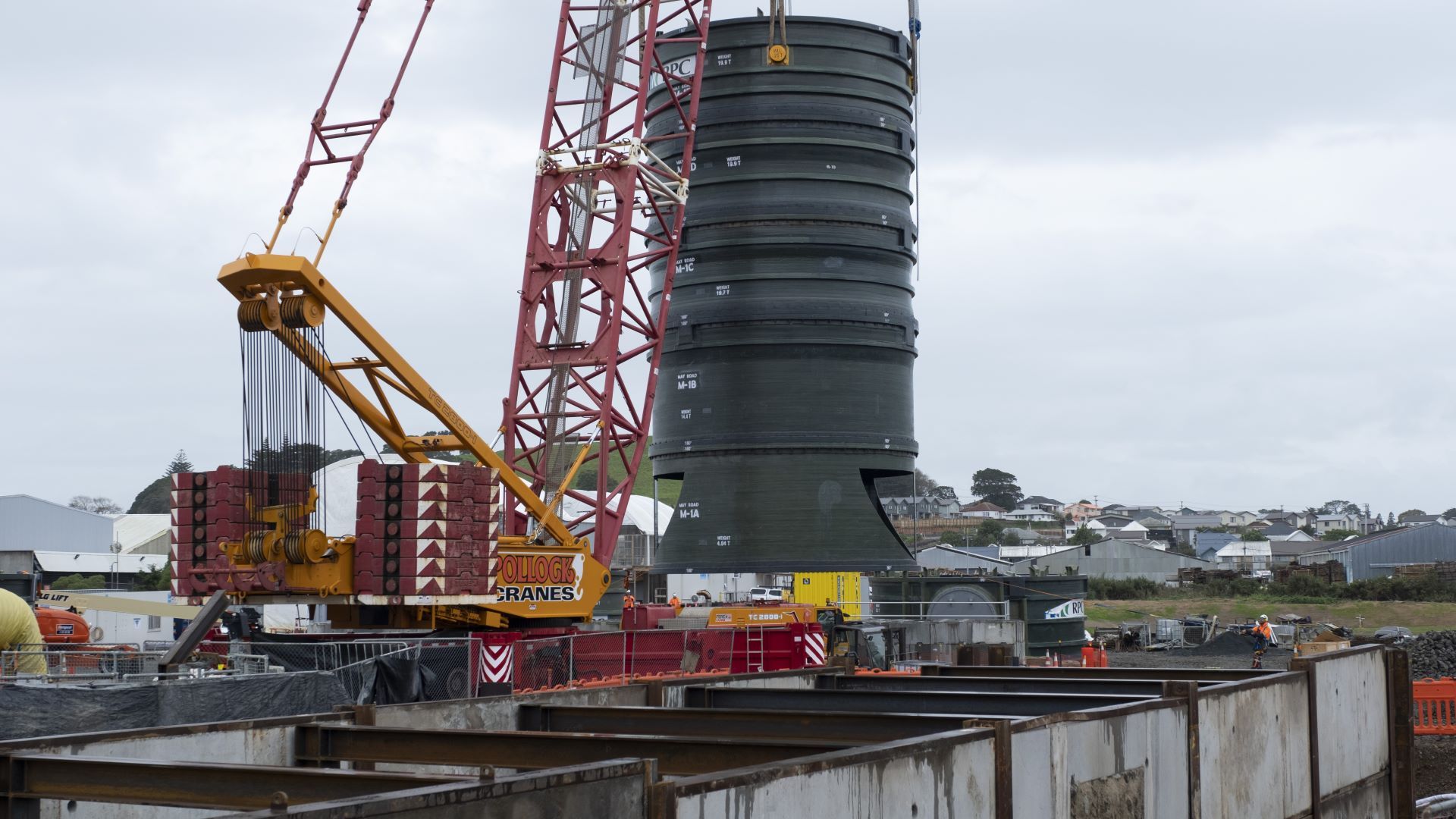

Central Interceptor - May Road Shaft B
54 Roma Road, Mount Roskill, Auckland 1041, New Zealand
3D scan of the May Road B shaft which connects to the Central Interceptor Tunnel. Full Depth approx. 50m

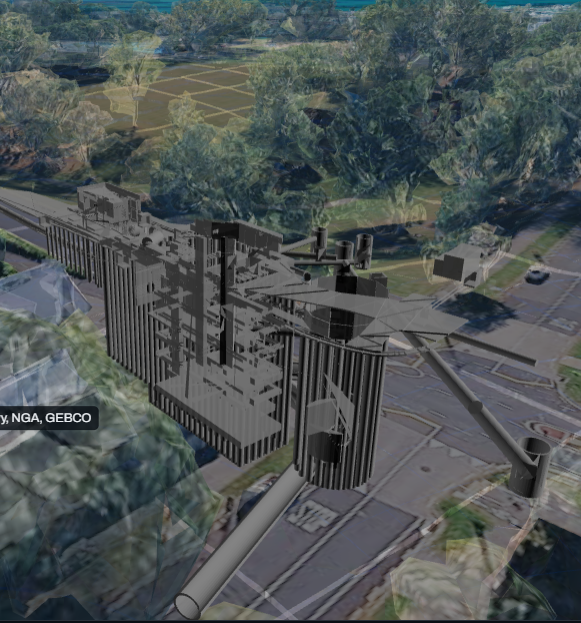

Herne Bay Collector
94 Shelly Beach Road, Westhaven, Auckland 1011, New Zealand
MH01 at SW Corner of Point Erin Park
Contact
UGx is a work in progress built by Peter Lai in Auckland. Spotted a bug, have feedback, or want your project shown here? Send a message below.
